MINERAL FIBRE CEILING

Mineral Fibre Tiles are used for acoustic purpose i.e. sound insulation. The material is very light weight. Also it is available in various thicknesses & densities to meet your sound insulation requirements. These tiles can be recycled and reused and are fabricated using advanced technology and quality raw material. Further, these Mineral Fiber Ceiling are used in theaters, libraries, lounges, shops, cafeterias, canteens etc. Furthermore, we offer these Mineral Fiber Ceilings along with installation.

Features:

  • Density: 300 – 350kg/m3 depending on thickness
  •  Fiber content: more than 50%
  • Fire performance:meets CNS6532 Class 1 standards
  •  Mold resistance
  •  Asbestos free
  • Formaldehyde free
  •  Product content: mineral fiber
  • thickness:12mm, 13mm,14mm, 15mm, 16mm, 18mm, 19mm,20mm
  •  Color of surface: white
  • Thermal conductivity: less than 0.065W/mK
  •  Noise reduction coefficient: NRC 0.4 – 0.6 depending on the pattern and the
  • thickness
  • Water content: more than 3%
  •  Light reflectivity: more than 85%
  • Standard dimensions: 595 x 595, 600 x 600mm, 600 x 1200mm
  • Coating: PVDA

PVC GYPSUM TILE

The latest addition to the false ceiling world is PVC Gypsum Tiles. These are gypsum tiles covered with aluminum foil at the back & PVC designed face at the front to give the exclusive look to the ceiling. Further the corners are covered with PVC strip, so it proves to be moisture proof as well as saves tiles from getting spoilt in case of water dripping from slab or roof.



Features

  • Contemporary designs and patterns to suit your ambience.
  • High light reflection range 80%-91%, helps with room illumination
  • Moisture resistance excellent performance in humid conditions
  • Fire protection made of Class 0 material for highest fire resistance performance
  • Easy to install in T-Grid system
  • Thermal resistance R=O.41 m2 KW and thermal conductivity K value = 0.16 W/mk
    • Good acoustic properties reduce noise in large areas
    • Factory made, smooth and uniform
    • Easy to clean hard washable surface that resists stains and abuse
    • Vinyl finish of panel, seals out moisture, bacteria, dirt and odors
    • In structural. thermal or hygrometric changes, panels are less likely to wrap and crack than conventional gypsum panels
    • No need for additional painting

METAL CEILING

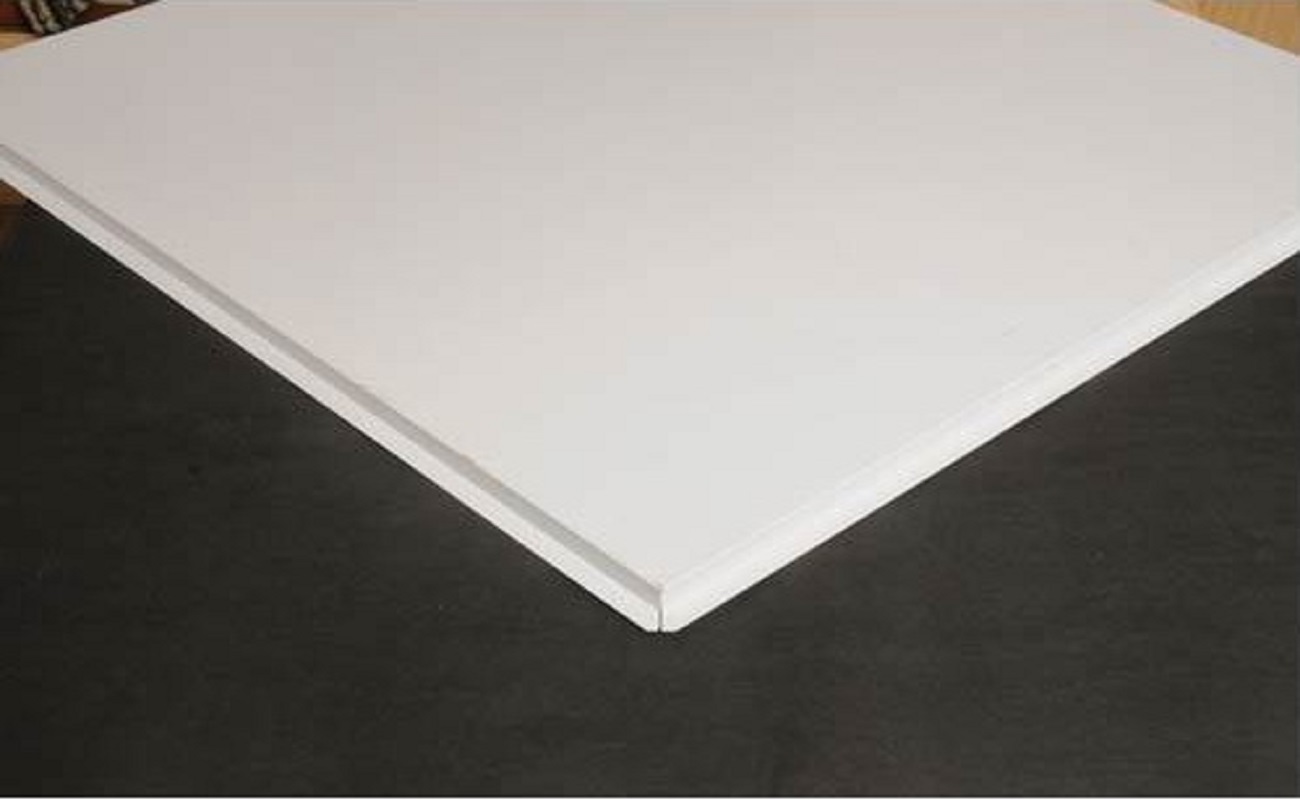

a)  Plain Lay-in Metal Ceiling

The tropical Indian weather sees huge swing in temperature and humidity, which leaves the traditional material highly vulnerable reducing its life and aesthetic functionality. Metal tiles are not impacted at all by these factors and retain their form & functionality under the most adverse situations ensuring a long life.

 Metal ceilings are a very advanced and technology oriented ceiling system. Plain Metal Tiles are available in size 595mm x 595mm which are laid on T-Grid suspension system.



Specifications

  • Rectangular or Square shape
  • 600mm x 600mm module
  • Thickness: Aluminum: 0.6mm
  • Galvanized Steel: 0.5mm
  • Exposed T Grid System (Lay-in) in 24mm and 15mm T Grids

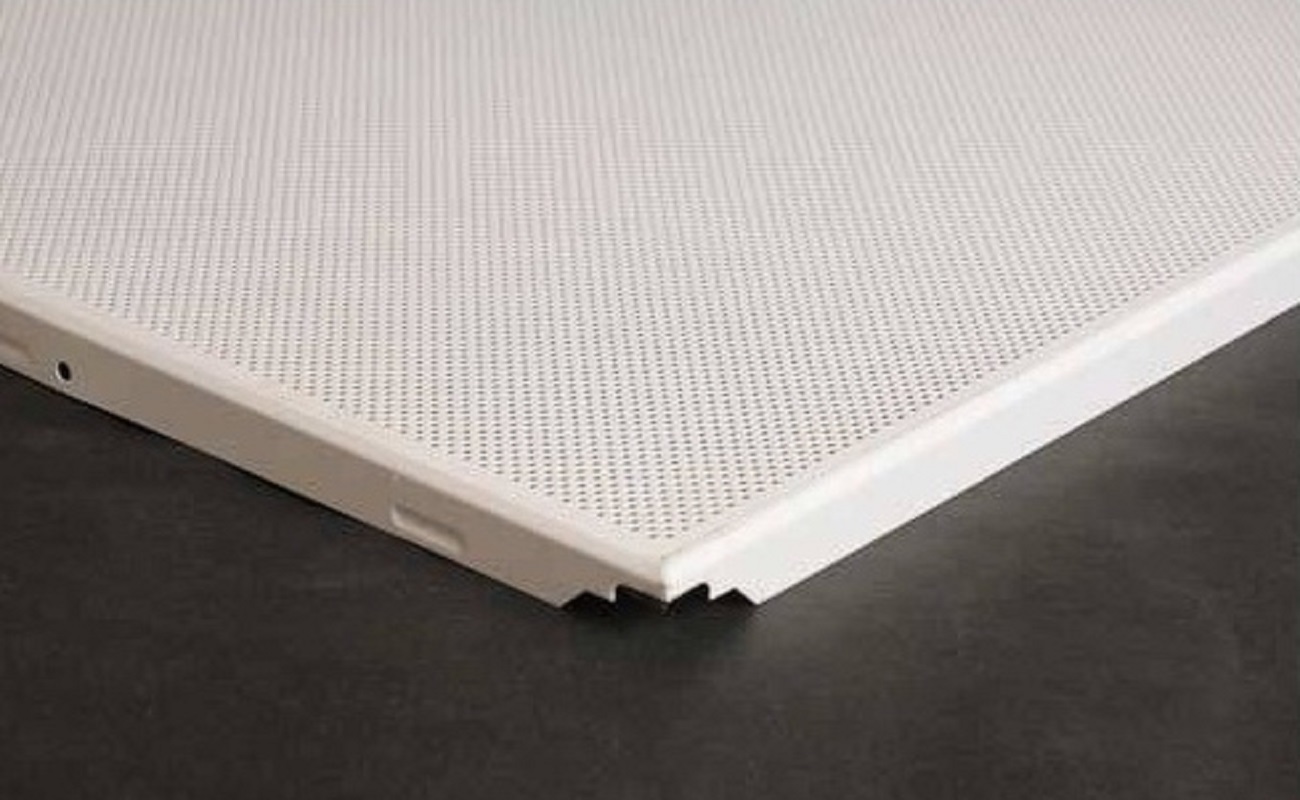

b) Perforated Lay-in Metal Ceiling

These are the patterns of G.I. and Aluminum tiles. The perforations on the tile are available in different sizes for varying acoustic requirements from 1.8 mm to 2.5mm with the possibility of square perforation too on special request.

Specifications :

  • Rectangular or Square shape
  • 600mm x 600mm module
  • Thickness: Aluminum: 0.6mm
  • Galvanised Steel: 0.5mm

Exposed T Grid System (Lay-in) in 24mm and 15mm T Grids

c)  Plain Clip-in Metal Ceiling

Plain Clip In Ceiling Tiles are the patterns Available in G.I. and aluminum Tiles. These are used to give a concealed look to the ceiling.

Product Characteristic:

  • Surface smoothness and easy cleaning
  •  Flexible suspension system makes each ceiling tile easily installed and disconnected
  •  Easy to match lamps or other ceiling parts
  •  Surface color can be stable for 10 years by indoor use
  •  Light and excellent rigidness
  •  Sound-proof, heat-insulating,fire-proof, Moisture-Proof

Application:

Shopping malls,supermarkets,outdoor facilities,gas stations,toll stations,subway,railway stations,airports,bus stations,schools,offices,meeting room,building lobbies,corridors,toilets,sport venues.

Specifications

  • Rectangular or Square shape
  • 600mm x 600mm module
  • Thickness: Aluminum: 0.6mm
  • Galvanized Steel: 0.5mm
  • Concealed Grid System (Clip-in)’V’ profile

D) Perforated Clip-in Metal Ceiling

The Clip-in system consists of square tiles or rectangular panels, which can be clipped on to carriers which are profiled to receive the tiles. Two sides of each tile are raised and piped and stopped to ensure positive engagement into the spring tee and yet allow for the demounting of individual tiles or panels.

The Tiles are made of Steel or Aluminum on sophisticated equipment, which includes several leveling stages. The tiles can be coil coated or powder coated in multiple colors. Perforation can be 2.5mm or 1.7mm.

Specifications

  • Rectangular or Square shape
  • 600mm x 600mm module
  • Thickness: Aluminum: 0.6mm
  • Galvanized Steel: 0.5mm

T-GRID SUSPENSION SYSTEM
